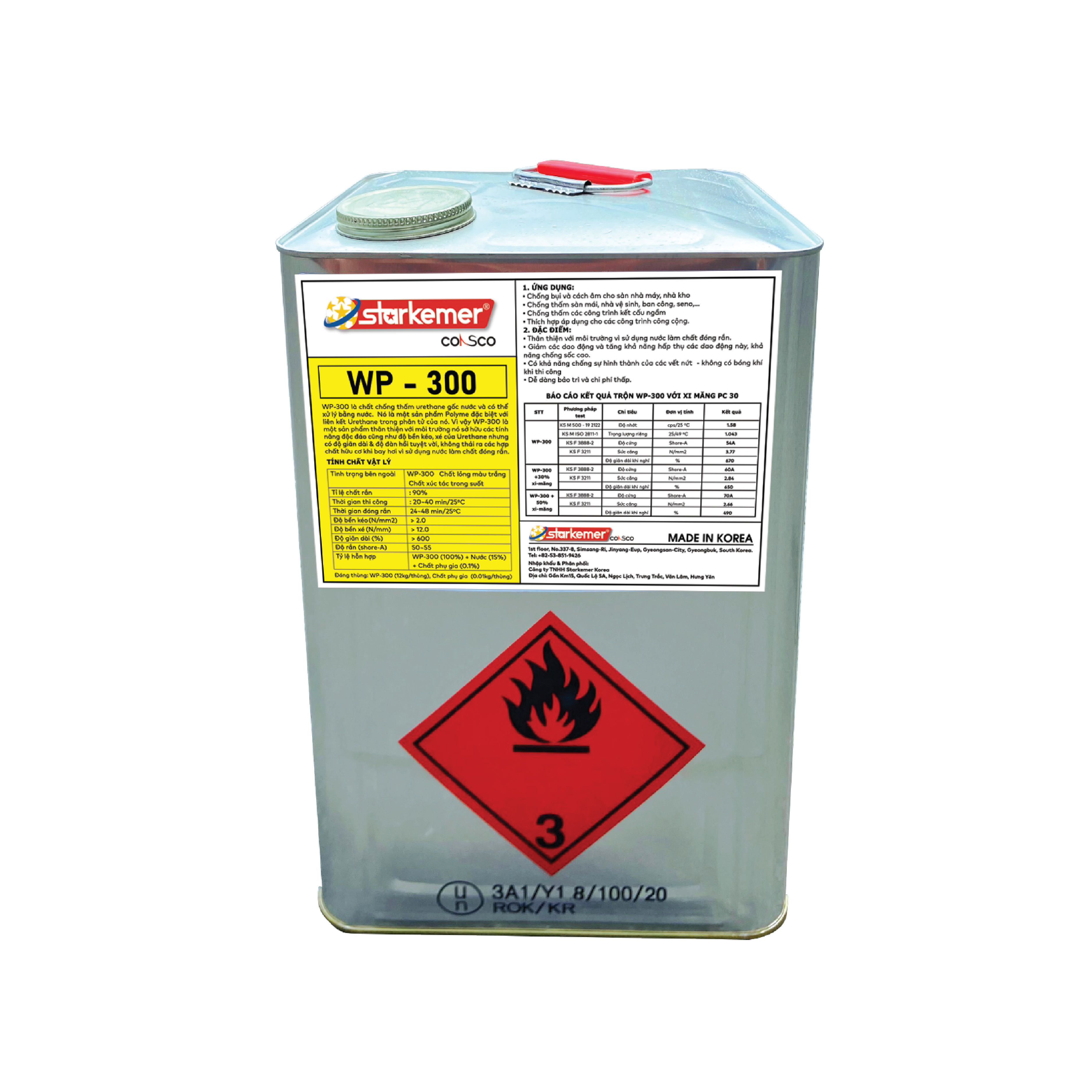

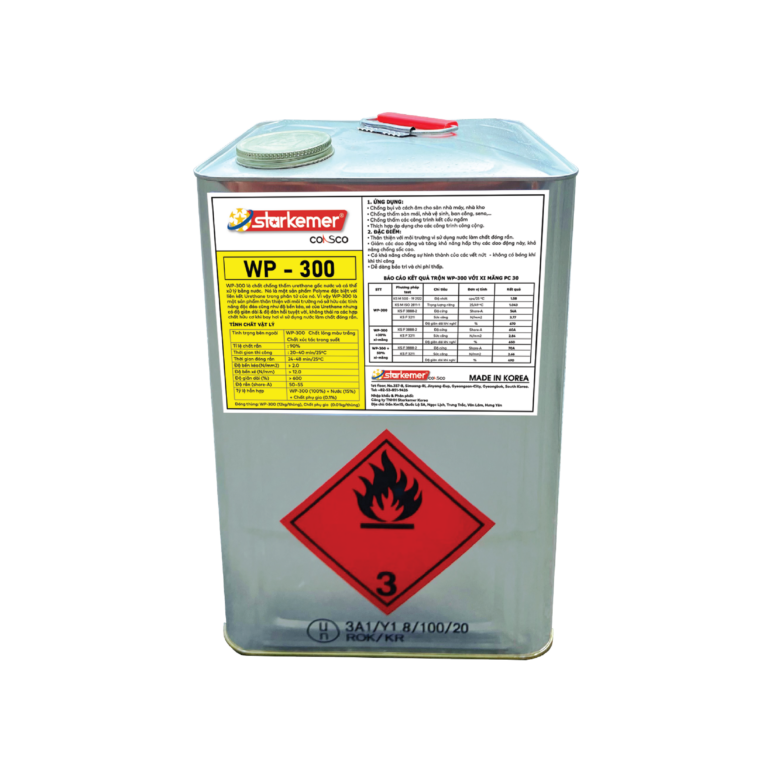

Model No.: Water-Base Polyurethane (WP-300)

카테고리:

설명

WP-300 is a water-curable urethane waterproof flooring material that is cured with water. It is a special polymer product with a urethane bond in its molecular structure. Therefore, WP-300 is an eco-friendly product that possesses the unique chemical properties and excellent tensile strength of urethane, yet has excellent elongation and elasticity and does not emit volatile organic compounds in the air by using water as a curing agent.





TECHNICAL DATA SHEET
Appearance Part A : White liquid

Part C : Clear liquid

Solids volume ratio 90%
Mixing ratio (by weight) Part A : Part B : Part C = 100 : 25 : 0.1

Part A :WP-300 , Part B  : Water,  Part C : Catalyst)

Curing time 24~48 (hour/25℃)
Packing unit Part A : 12kg

Part C : 0.62kg

Pot life 20~40 (min/25℃)
Shelf life 6 months (Recommended) Thinner Not used
Tensile strength Min. 2.0 (N/mm2) Elongation Min. 450%
Tear strength Min. 12.0(N/mm) Hardness 45~55 (Shore A)
CHARACTERISTICS ­ Because it uses water as a curing agent, it is eco-friendly and has no defects caused by moisture

– Excellent in appearance and excellent in weather resistance, durability, adhesion, impact resistance, etc. .

–  Reduces fatigue and improves performance by absorbing and weakening shock.

–  It is resistant to cracks and vibrations and has no deformation.

–  Easy maintenance and low maintenance cost.

RECOMMENDED USE ­  For dust and soundproof floors in factories and warehouses

­  Apartment, rooftop waterproofing of buildings

–  Waterproofing of underground concrete structures

–  For general offices, hospitals, schools, libraries, etc.

STORAGE PRECAUTIONS ­ Store it indoor and cool place and keep away from ignition.

­ Use masks, gloves, or other protector during the application.

­ Store the remaining materials quite sealed after use.

­ Do not exposure to the moisture.

­ In case of ingestion or skin contact, administrate first aid according to notice on container or Material Safety Data Sheet(MSDS), and see the doctor immediately.









This Sheet covers with the working with WP-300

This Sheet is a kind of standard of operations, so if there a specification for detail work and there are some difference in the two documents, it’s nice to work according to the specification.





DIRECTION FOR USE
SURFACE

PREPARATION

1)       Importance of surface treatment : There are much alkaline dust on the concrete surface,

and it make poor adhesion with polyurethane and surface. So it must be removed for

strong film and excellent adhesion.

2)       Cure the concreted surface sufficiently to remove the alkali of the surface and keep the

moisture content within 8% max.

Temperature (℃) Need to Curing (day)
24 28 Min.
21 30 Min.
10 40 Min.
7 60 Min.

3)       Clean the surface with acid , sandblast or grinding if you need.

4)   It should be cured completely when the appropriate primer or equivalent material was applied.

5)   Remove dust, sand, moisture and oil on the surface.

6)   In case that the surface to be applied is damp, dry fully and apply.

DIRECTONS FOR

WORK

1. Direction for Seretite undercoat

­ Check the cleaned surface.

­ If there are some water it must be dried and must be not dusty.

­ Then apply to cleaned surface with proper primer, seretite undercoat

­ Apply with the WP-300 after curing the primer. It may be one to twelve hours after seretite coat coating.

­ See the DIRECTIONS FOR USE of seretite undercoat for the details.

2. Direction for WP-300

­ Check the curing of seretite undercoat coating and then apply the WP-300.

­ Mix well part A, B and C by correct mixing ration with electric agitator.

­ Must mix well part A, B and C to scrape up the product on the wall of package cans. Otherwise you might have the failure curing film.

­ After mixing well sufficiently, apply to surface with the WP-300 with rake or roller.

­ If you need more than 3㎜ thickness, apply within 3㎜ per one time until to get aiming

thickness.

­ When the temperature is higher than 28℃, you might as don’t use as possible. But in that case unavoidable applying, must apply 2 or 3 times for intermediate coating and apply it after 5 p.m.

3. Direction for Polyurethane TOP COAT

­ Check the curing of intermediate coating and then apply the TOP COAT.

­ Repair the intermediate if there are some problems as curing problems or coming undone from the floor.

­ Mix well the TOP COAT part A and part B.

­ You’d need electric agitator because the viscosity of top coat is very low.

­ Coat the surface with mixed well TOP COAT with paint roller, sprayer or other

instruments.

­ It could be used thinner when it need to adjust the fluidity for easy control.

­ Do not use the alcohols as thinner, the alcohols react with the TOP COAT and became poor film.

­ If you use sprayer, clean well the hose and other equipment of sprayer after the operations to

prevent curing the TOP COAT in the equipment.

­ Keep prevent passage in 24~72 hours after applying and then permit when it fully cured.

­ See the DIRECTIONS FOR USE of TOP COAT for the details

PRECAUTIONS



1)       Take a gas mask and put on the other personal protector in the applying.

2)       Must use suitable thinner, otherwise you must get failure coating film.

3)       Products of this type can be expected to be eye and skin irritants and have the potential to cause sensitization or other allergic responses.

4)       Appropriate precautions should be taken to avoid eye and skin contact and to avoid inhalation of the aerosols or vapors.

5)       Consult the relevant Material Safety Data Sheet for appropriate handling procedures and protective equipment prior to using this or any other material referred to in this bulletin.

6)       See Material Safety Data Sheet for emergency and first aid procedures.

7)       Must not use this product for other purposes except for it’s own use.

8)       Keep adequate ventilation during the application.

9)       Store it indoor and cool place and keep away from ignition.

10)    Once opened, containers should be resealed immediately after removal of the product.

11)    Keep away from children during coating and storing.



TEST REPORT for the WP-300 mixing with cement



Sortation Test method Category   Unit Result
WP-300 KS M 5000-19 2122 Viscosity   cps/25℃ 1,580
  KS M ISO 2811-1 Specific gravity   25/4℃ 1.043
  KS F 3211 Tensile

performance

Tensile strength N/mm² 3.77
      Elongation at break % 670
  KS F 3888-2 Hardness   54A
WP-300

+ Cement 30%

KS F 3211 Tensile

performance

Tensile strength N/mm² 2.84
      Elongation at break % 650
  KS F 3888-2 Hardness   60A
WP-300

+ Cement 50%

KS F 3211 Tensile

performance

Tensile strength N/mm² 2.66
      Elongation at break % 490
  KS F 3888-2 Hardness   70A
