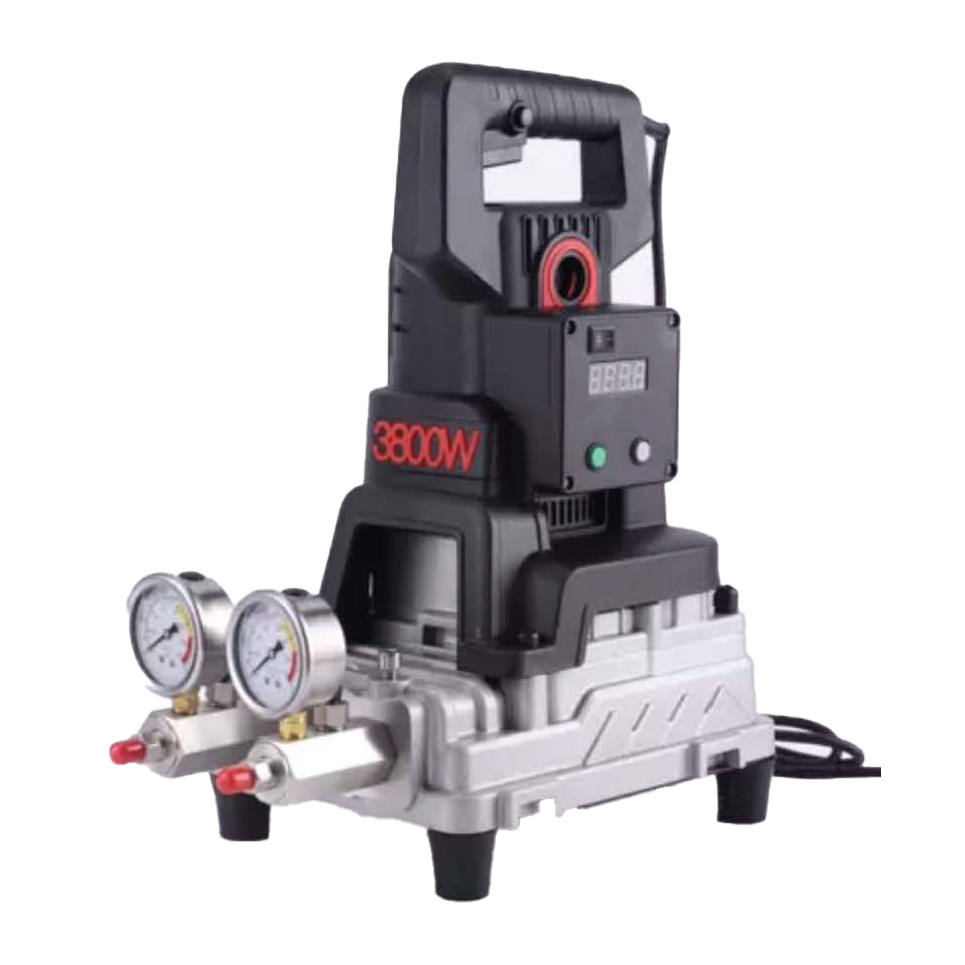

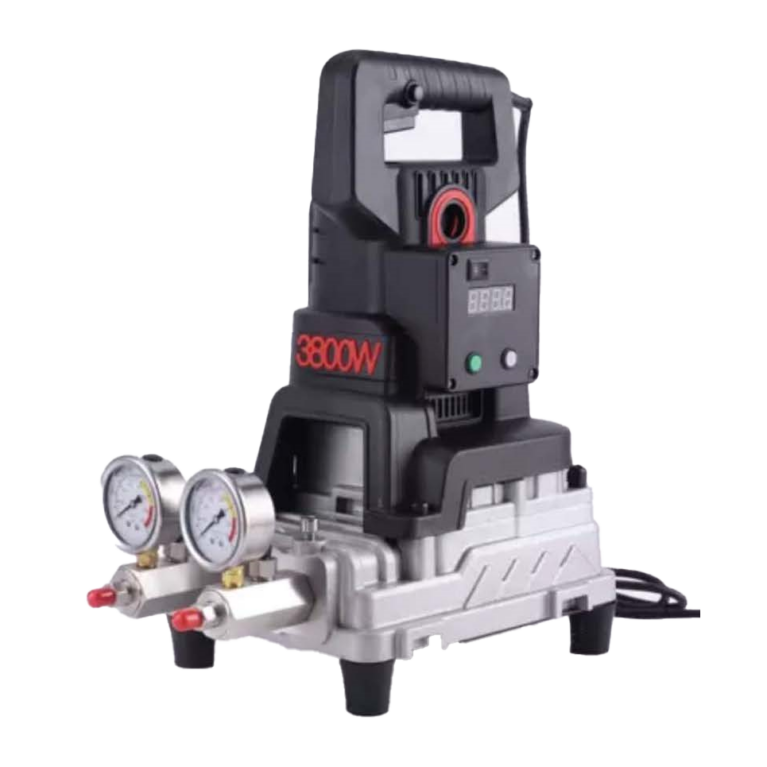

Model No.: ACR-3300 (Acrylic Injection Pump)

Description

FEATURE

• Easy adjustment of pressure and flow rate
• The pump is small and light
• Easy operation and cleaning



TECHNICAL DATE

Power Supply	220V / 50Hz
Rated Power	3800W
Max. Pressure	5,000 psi (350kg/㎠)
Recommend Pressure	3,500 psi (250kg/㎠)
Flow Rate	0~3.5 liter / min
Machine Weight	17kg
Machine Dimension	40㎝(L) x 30㎝(W) x 60㎝



DESCRIPTION

• Protection gauge
• Two components mixing head
• Pressure control is depending on field condition.



MATERIAL TO BE USED

• 2 components injection resin
• Aqueous solution
• Acrylic resin
