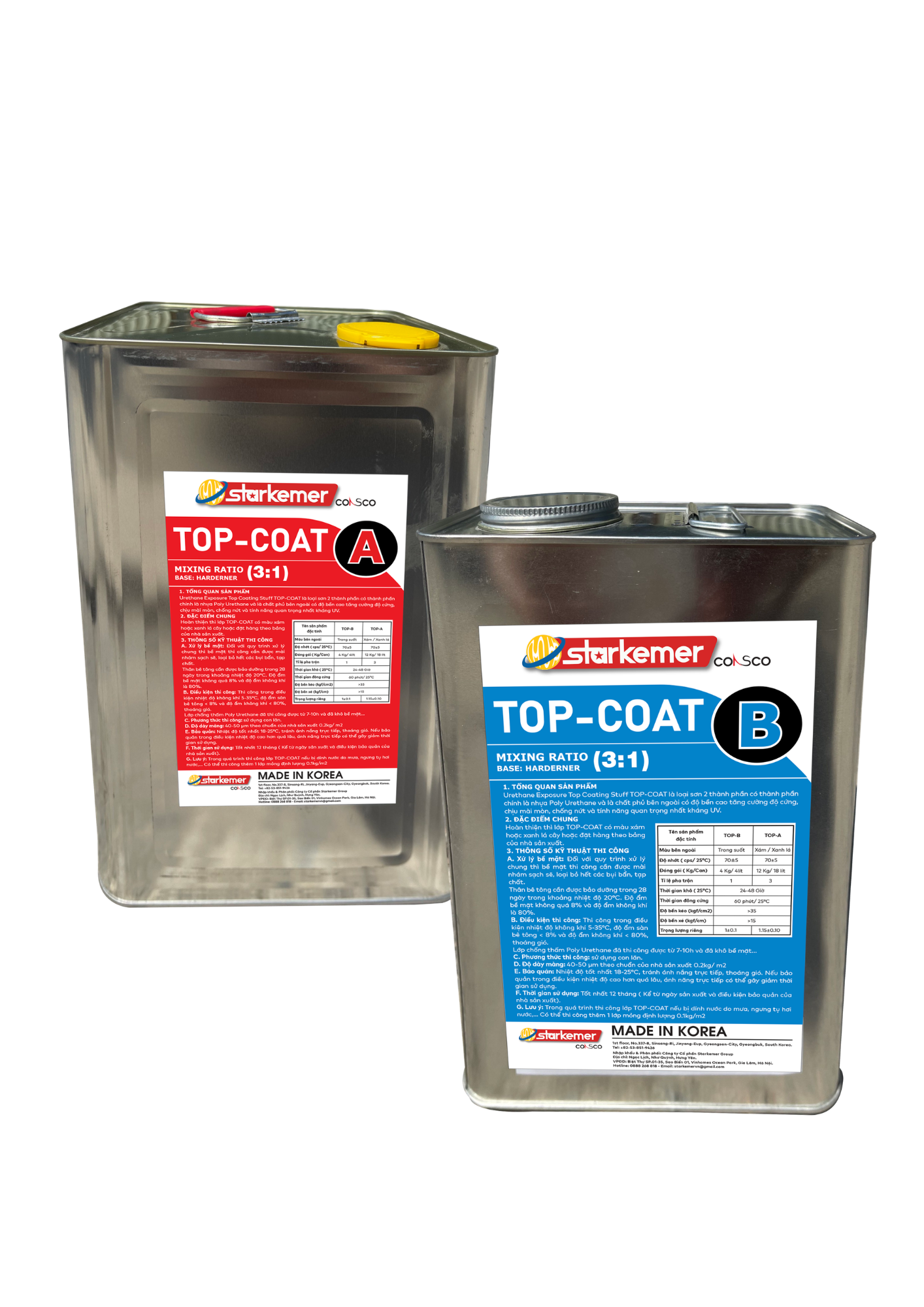

Model No.: TOP-COAT A/B (Polyurethane 2-Liquid Top Coating)

Description

1. Overview of Product

Urethane Exposure Top Coating Stuff TOP-COAT    is a 2-liquid paint containing polyurethane resin      as its main ingredient and is an outside coating     stuff having excellent durability and application       property against cracking of the body.

2. General Characteristics

Finishing : Grey and green are available and colors are available by ordering.

Product Name Properties	TOP-B		TOP-A
Appearance	Light-yellow transparent liquid		Various Color
Viscosity (cps/25℃)	70±50		70±5(KU/25℃)
Packing Unit (kg/CAN)	4kg/4liter		12kg/18liter
Mixing ratio (wt%)	1		3
Pot life (min/25℃)	60
Drying time (25℃)	Min.24 Hours  Max.48 Hours
Tensile strength(kgf/㎠)	≥35
Ter strength (kgf/㎝)	≥15
Specific Gravity(25/4℃)	1.0±0.10	1.15±0.10



3. Application specifications



• Surface treatment : ▪ Concrete body requires at least 28 days of curing time at 20℃ temperature and at 80% of relative humidity to have 8% or lower surface water content.



▪ Pre-treatment : Completely remove foreign        substances such as laitance from the surface by    blasting, chipping, and or grinding the surface.



• Application condition: Application and curing should be done at 5℃or higher temperature and the condition to avoid condensation of moisture is 5℃ or higher surface temperature of the body than dew point and 80% or lower relative humidity..



• Application method: Exclusive rake and Spatula



• Film thickness: 40~50㎛ per application

However, scrapping(full putty) work is  exceptional



• Storage : 12 months (dry, cool, and dark place with good ventilation)



• Remarks : Avoid storage at 30℃or higher temperature.

▪ In the high-temperature condition with direct   sunlight in the summer, outdoor work should   be avoided due to possible swelling.

▪  When surface adhesion is reduced due to    rain or snow, dilute PP-100 for urethane       bottom lower layer and apply the paint once

more at the consumption rate of app.0.1kg/㎡

▪  Continuos application is needed to reduce the   formation of seams at the interfaces.

▪  When the skin is contacted with the paint during handling, wash the skin with organic solvent and then with soapy water.

▪  Check the information of the product, refer to Material Safety Data Sheet(MSDS)
