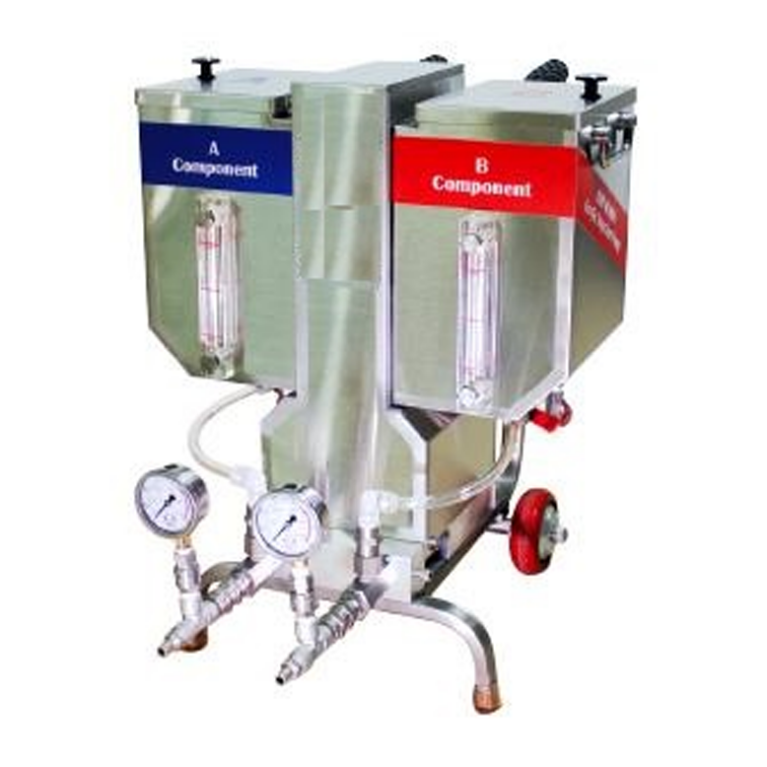

Model No.: ACR-3500 (Acrylic Injection Pump)

Mô tả

FEATURE

• Easy adjustment of pressure and flow rate
• The pump is small and light
• Easy operation and cleaning



TECHNICAL DATE

Power Supply	220V / 50Hz
Max. Pressure	430kg/㎠
Recommend Pressure	350kg/㎠
Liquid Tank	8 liter x 2 (SUS303)
Flow Rate	0.8 liter / min
Machine Weight	29kg
Machine Dimension	58㎝(W) x 66㎝(D) x 47㎝



DESCRIPTION

• Protection gauge
• Two components mixing head
• Pressure control is depending on field condition.



MATERIAL TO BE USED

• 2 components injection resin
• Aqueous solution
• Acrylic resin
